Modular aluminium formwork
Modular aluminium formwork.
A reinforced aluminium frame and 15 mm thick shuttering.

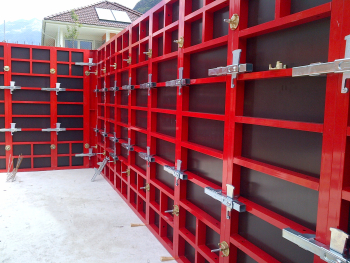

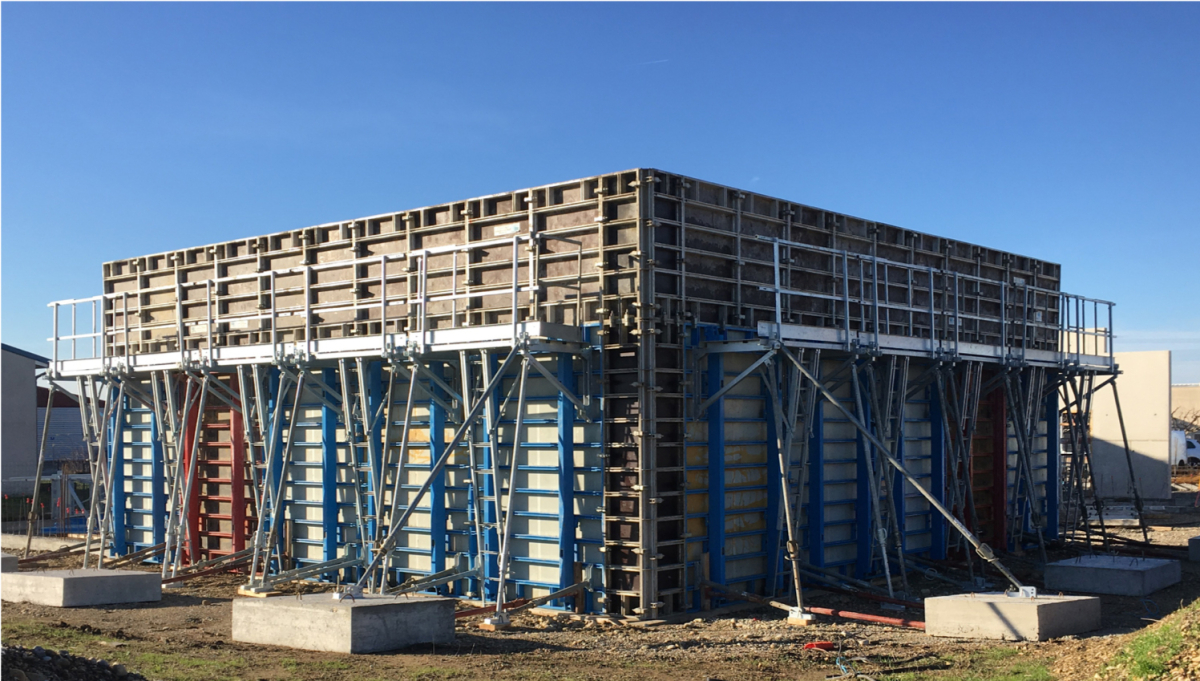

AS10 evolution
- A formwork panel system designed for erecting stringers, substructures and industrial buildings.
- Rapid implementation.
- Stackable panels, can be installed vertically or horizontally.
- Vertical reinforcements for lifting in complete safety.
- A fully-automated production line.
- Perfect conformity, from cutting profiles to installing the shuttering.
- A 10 cm aluminium frame for allowable pressure of 60 kN/m².
- Lightweight panels: average weight 22.50 kg.
- Various dimensions available.
- Standard: up to 2 x 3 m.
- 15 mm thick shuttering (plywood or Alkus®).
- Easy to pass the rods through, including the lowest one.
